P. 6

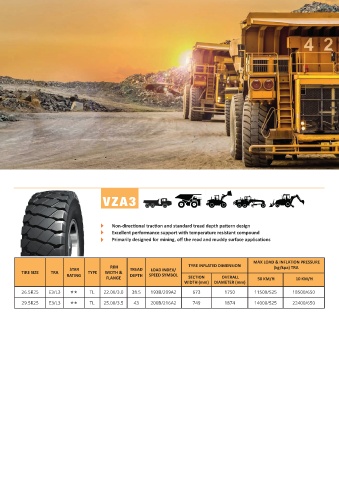

VZA3
Non-directional traction and standard tread depth pattern design
Excellent performance support with temperature resistant compound
Primarily designed for mining, off the read and muddy surface applications
MAX LOAD & INFLATION PRESSURE
STAR RIM TREAD LOAD INDEX/ TYRE INFLATED DIMENSION (kg/kpa) TRA
TIRE SIZE TRA TYPE WIDTH &
RATING FLANGE DEPTH SPEED SYMBOL SECTION OVERALL 50 KM/H 10 KM/H
WIDTH (mm) DIAMETER (mm)
26.5R25 E3/L3 ** TL 22.00/3.0 38.5 193B/209A2 673 1750 11500/525 18500/650
29.5R25 E3/L3 ** TL 25.00/3.5 43 200B/216A2 749 1874 14000/525 22400/650
