P. 7

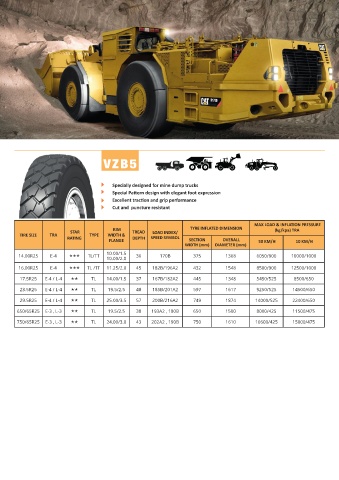

VZB5
Specially designed for mine dump trucks
Special Pattern design with elegant foot expression
Excellent traction and grip performance
Cut and puncture resistant
MAX LOAD & INFLATION PRESSURE
STAR RIM TREAD LOAD INDEX/ TYRE INFLATED DIMENSION (kg/kpa) TRA
TIRE SIZE TRA TYPE WIDTH &
RATING DEPTH SPEED SYMBOL
FLANGE SECTION OVERALL 50 KM/H 10 KM/H
WIDTH (mm) DIAMETER (mm)
14.00R25 E-4 *** TL/TT 10.00/1.5 36 170B 375 1368 6050/800 10000/1000
10.00/2.0
16.00R25 E-4 *** TL /TT 11.25/2.0 45 182B/196A2 432 1548 8500/900 12500/1000
17.5R25 E-4 / L-4 ** TL 14.00/1.5 37 167B/182A2 445 1348 5450/525 8500/650
23.5R25 E-4 / L-4 ** TL 19.5/2.5 48 185B/201A2 597 1617 9250/525 14500/650
29.5R25 E-4 / L-4 ** TL 25.00/3.5 57 200B/216A2 749 1874 14000/525 22400/650
650/65R25 E-3 , L-3 ** TL 19.5/2.5 38 193A2 , 180B 650 1500 8000/425 11500/475
750/65R25 E-3 , L-3 ** TL 24.00/3.0 43 202A2 , 190B 750 1610 10600/425 15000/475
